W25Q80BW

7.2.22

Quad Input Page Program (32h)

The Quad Page Program instruction allows up to 256 bytes of data to be programmed at previously

erased (FFh) memory locations using four pins: IO 0 , IO 1 , IO 2 , and IO 3 . The Quad Page Program can

improve performance for PROM Programmer and applications that have slow clock speeds <5MHz.

Systems with faster clock speed will not realize much benefit for the Quad Page Program instruction

since the inherent page program time is much greater than the time it take to clock-in the data.

To use Quad Page Program the Quad Enable in Status Register-2 must be set (QE=1). A Write Enable

instruction must be executed before the device will accept the Quad Page Program instruction (Status

Register-1, WEL=1). The instruction is initiated by driving the /CS pin low then shifting the instruction

code “32h” followed by a 24 -bit address (A23-A0) and at least one data byte, into the IO pins. The /CS pin

must be held low for the entire length of the instruction while data is being sent to the device. All other

functions of Quad Page Program are identical to standard Page Program. The Quad Page Program

instruction sequence is shown in figure 20.

/CS

Mode 3

0

1

2

3

4

5

6

7

8

9

10

28

29

30

31

CLK

Mode 0

Instruction (32h)

24-Bit Address

IO 0

23

22

21

3

2

1

0

*

IO 1

IO 2

IO 3

* = MSB

/CS

31

32

33

34

35

36

37

Mode 3

CLK

Mode 0

Byte 1

Byte 2

Byte 3

Byte

253

Byte

254

Byte

255

Byte

256

IO 0

IO 1

IO 2

IO 3

0

4

5

6

7

0

1

2

3

4

5

6

7

0

1

2

3

4

5

6

7

0

1

2

3

4

5

6

7

0

1

2

3

4

5

6

7

0

1

2

3

4

5

6

7

0

1

2

3

4

5

6

7

0

1

2

3

*

*

*

*

*

*

*

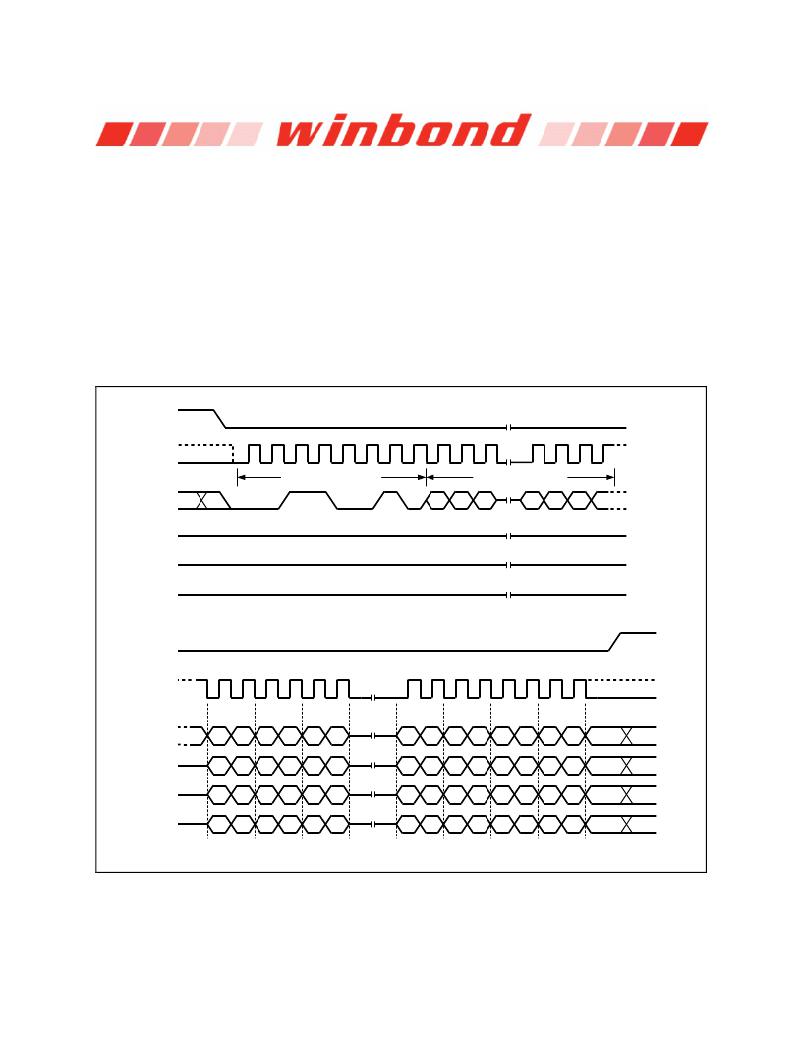

Figure 20. Quad Input Page Program Instruction Sequence Diagram

- 40 -
